Hand Pallet Truck – High Lift Truck

About

Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
Support legs come into operation automatically.
It prevents the unit from moving when the forks are raised to keep the safety of the operator.
Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
210 degree turning radius.
2 lateral stabilizers when raised ensure good stability.

Model	LYNX-HLT
Capacity	Q(kg)	1000
Lowered fork height	h13(mm)	85
Steering wheel	mm	Φ180X50
Fork wheel	mm	Φ74X50

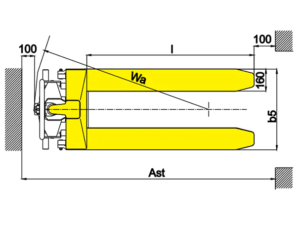

Fork length	l (mm)	1150
Width overall forks	b5(mm)	520/550/685
Aisle width for pallets 1000×1200 crossways	Ast(mm)	1715
Aisle width for pallets 800×1200 lengthways	Ast(mm)	1765
Turning radius	Wa(mm)	1360
Service weight	kg	104-115
