Enhance Power Quality | Infineon IGBT Inside | Dual Functionality Available | Eliminate Harmonics | Improve Efficiency

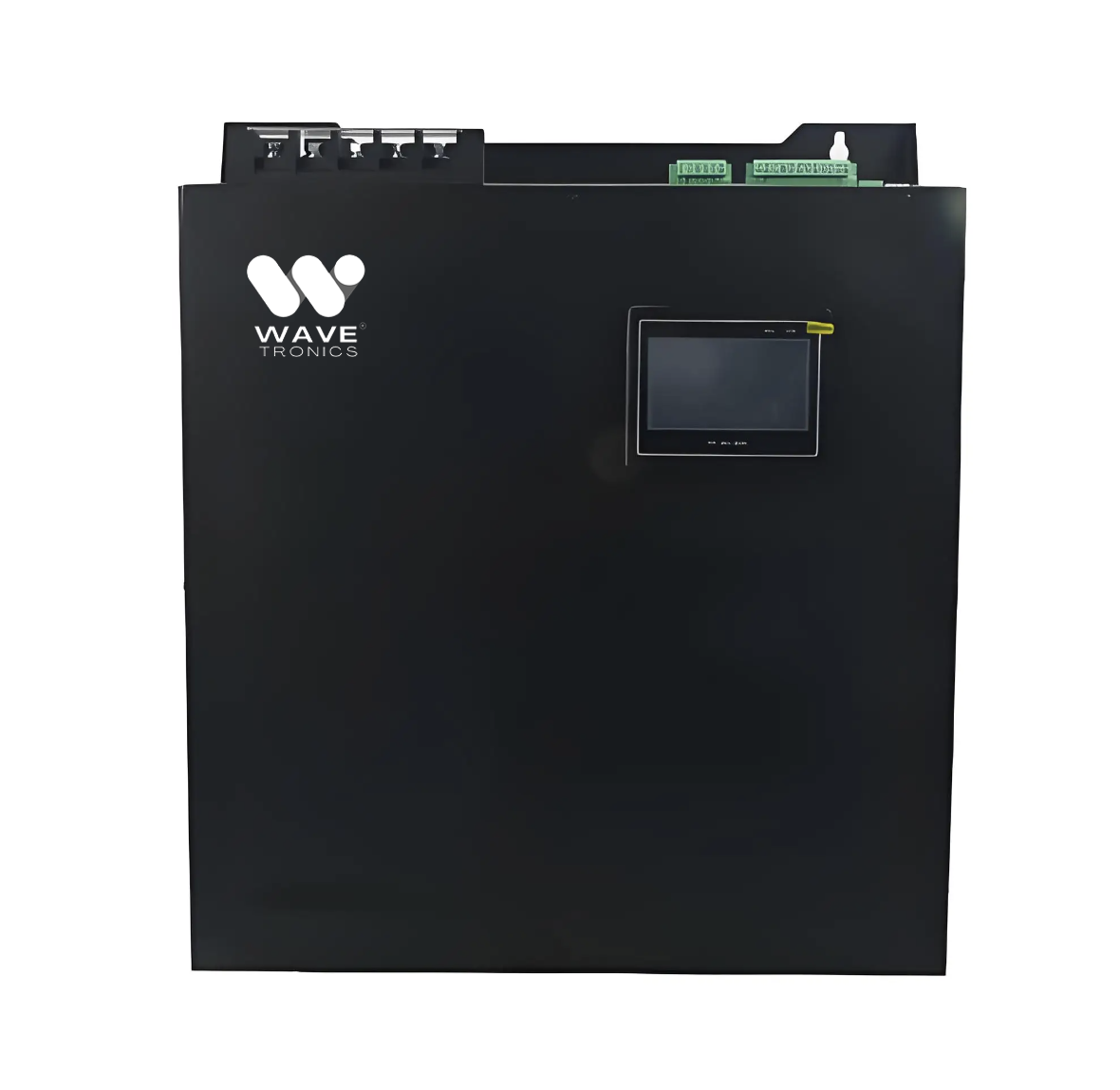

Our Active Harmonic Filter (AHF) is a high-performance solution engineered to tackle harmonic distortion, poor power factor, and load imbalance with unmatched precision. Powered by Infineon IGBTs, known globally for their reliability and efficiency. Our AHFs are ideal for industrial and commercial facilities, AHFs ensure compliance with IEEE 519 and other international power quality standards, protecting sensitive equipment and improving overall energy efficiency.
APF (Active Power Filter) – Focuses on harmonic elimination, load balancing, and dynamic power factor correction.
APF + SVG (Hybrid Model) – Combines harmonic filtering with Static Var Generation for advanced reactive power compensation and voltage stability.
Whether you need a compact solution for harmonic distortion or a full-spectrum system for complete power conditioning, our AHF range offers a perfect fit.
| Single module capacity | 35kvar/50A | 50kvar/75A | 75kvar/100A | 100kvar/150A |
| weight | 14kg | 17kg | 27kg | 30kg |
| Rated voltage (V) | 200/400 | |||
| Input voltage range | -20%~+20% | |||
| Frequency | 50/60Hz (-10%~+10%) | |||
| Compensation range | Capacity, perceptual continuous adjustable | |||
| CT way to install | Open or closed loop (recommended in parallel case) | |||
| CT installation site | Grid side / load side | |||
| Response time | ≤10ms |
| Wiring system | Three-phase three-line / three-phase four-wire |
| Overload capacity | 110% rated current and 1min at 120% rated current |
| THDU | ＜10% |
| Circuit topology | Three-level topology |
| Switching frequency | 20 kHz |
| Number of machines | ≤ 20 |
| Redundance | Any unit can become separate units |
| Unbalanced governance | Optional |
| Harmonic governance | Optional |
| Display | Screen / 1.8 inch screen / external 7 inch screen (optional) |
| Communication interface | RS485、CAN |
| Noise level | <56 dB max to <69 dB (depending on module or load condition) |
| Above sea level | 1% decrease is used for> 1500m per 100m increase |
| Ambient temperature | Operating temperature: -25°C~55°C, drop over 45℃ |
| Storage temperature: -45°C~70°C | |
| Humidity | 5% ~ 95% RH, with no condensation |
| Cooling method | Intelligent air cooling |
| Levels of protection | IP20 |
| Module air volume | 570（CFM）/16m3（/min） |
| SVG/APF | Dimensions (WHD) | weight |
| 35kvar/50A | 440 × 88 × 425 mm | 14kg |
| 50kvar/75A | 440 × 88 × 510 mm | 17kg |
| 75kvar/100A | 500 × 100 × 550mm | 27kg |
| 100kvar/150A | 500 × 100 × 550mm | 30kg |
| SVG/APF | Dimensions (WHD) | weight |
| 35kvar/50A | 440 × 425 × 88 mm | 14kg |
| 50kvar/75A | 440 × 510 × 88 mm | 17kg |
| 75kvar/100A | 500 × 600 × 102mm | 27kg |
| 100kvar/150A | 500 × 600 × 102mm | 30kg |
| Number | Description |
| 1 | COM debugging interface |
| 2 | 1.8-inch display screen (optional) |
| 3 | CT signal port |
| 4 | Digital port |
| 5 | Communication port |
| 6 | Debug the power interface (220V), 35 kvar / 50A, 50 kvar / 75A no |
| 7 | Ground wire interface, M6 screw |
| A、B、C、N | Power line interface |
